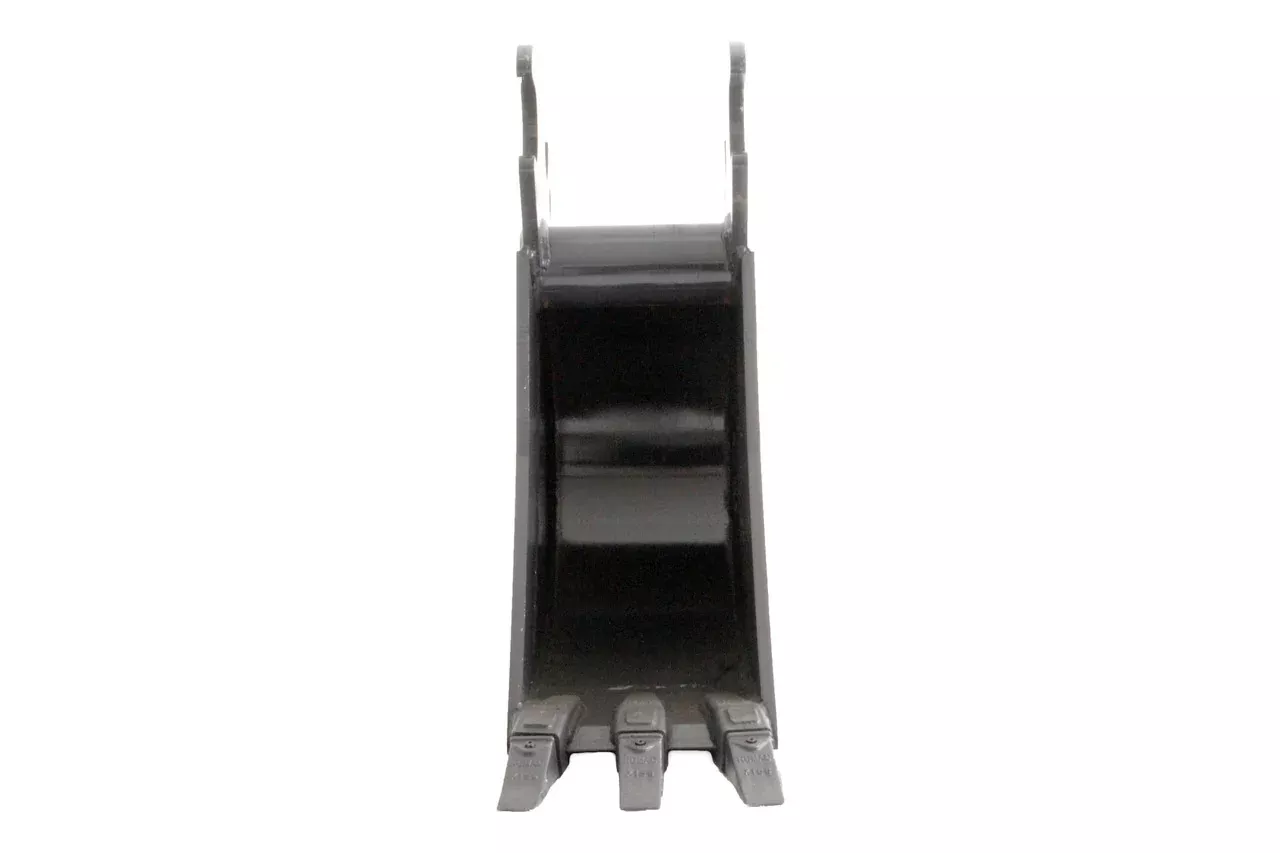

IS Attachments Tooth Buckets | Width 12″- 36″ | Machine Size 5-7 Tons | For Excavators
Original price was: $850.80.$537.96Current price is: $537.96.
Description
Products Description
IS Attachments Tooth Buckets | Width 12″- 36″ | Machine Size 5-7 Tons | For Excavators
The IS Attachments Tooth Bucket Series is engineered for compact excavators in the 5–7 ton class, delivering precision digging, trenching, and material handling performance across construction, utility, and landscaping applications. Available in sizes from 12″ to 36″, each bucket is built with 3/8″ 572-50 grade steel shells and AR400 side plates, ensuring durability in rocky, abrasive, and high-impact environments.
Buckets feature 1″ cutting edges, 5/8″ side edge reinforcements, and optimized tooth configurations for aggressive breakout force. Capacities range from 2.9 to 7.4 cubic feet, with models tailored to fit popular machines including Bobcat E42–E60, Case CX57C/CX60C, Caterpillar 305/305.5, John Deere 50G/60G, Kubota KX057/U55, and many more. Select models include pins and direct-fit mounts; others require mount specification for compatibility.
Whether you’re trenching utilities, shaping foundations, or clearing spoil, this series offers rugged performance and reliable fitment across dozens of host machines.
Key Features
- Optimized for Mid-Size Excavators Designed to fit 5–7 ton machines for trenching, digging, and utility work in compact and urban job sites.
- Heavy-Duty Shell Construction Formed from 3/8″ 572-50 grade steel for structural integrity and long-term durability.
- Abrasion-Resistant Side Plates 3/8″ AR400 steel resists wear in high-impact digging environments.
- Reinforced Cutting Edges 1″ thick front edge and 5/8″ side edges for aggressive trenching and clean cuts.
- Optimized Tooth Count by Width
- 12″–13″ buckets: 5 teeth
- 16″–18″ buckets: 4 teeth
- 36″ buckets: 5–6 teeth
- Bucket Depth & Height Standardized 24″ depth and 20–23″ height for consistent trench profiles.
- Capacity Range From 2.9 cu ft (16″) to 7.4 cu ft (36″) depending on model.
- Mounting Options Direct-fit for Bobcat E42–E60; other models require mount specification. Pins included where noted.
- Host Machine Compatibility Fits Bobcat, Case, Caterpillar, Doosan, Hitachi, Hyundai, John Deere, Kobelco, Komatsu, Kubota, New Holland, Sany, Takeuchi, Volvo, Wacker Neuson, and Yanmar.
Detailed Specifications
EB1012 – 12″ Tooth Bucket
| Specification | Details |
|---|---|
| Part Number | EB1012 |
| Attachment Size | 12″ Tooth Bucket |
| Machine Size | 5–7 tons (10,000–14,000 lbs) |
| Width | 12 in |
| Height | 23 ¼ in |
| Depth | 24 in |
| Capacity | 4.2 cu ft |
| Number of Teeth | 5 |
| Cutting Edge Thickness | 1 in |
| Side Cutting Edge Thickness | 5/8 in |
| Side Material | 3/8 in AR400 |
| Shell Material | 3/8 in 572-50 (required for forming) |
| Weight | 425 lbs |
| Mount Compatibility | Bobcat E42 R2 (LA), E50, E55, E60 |
