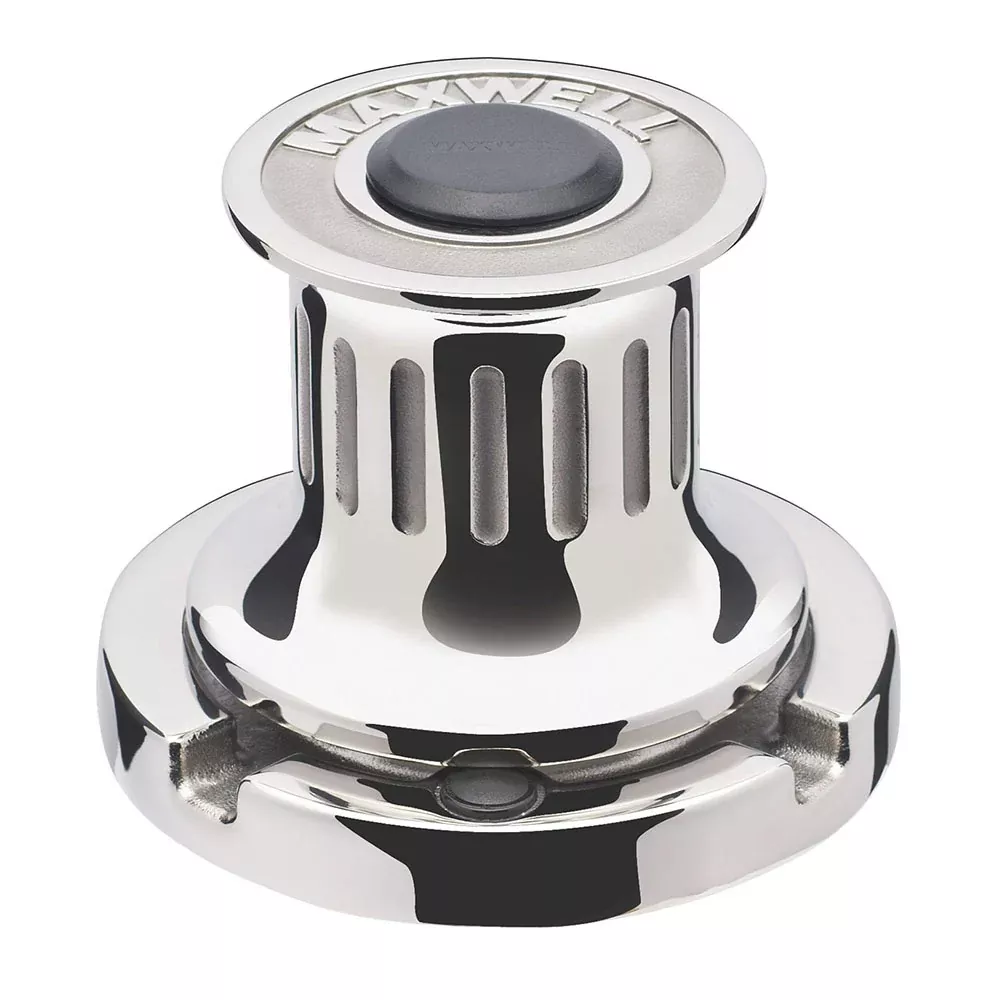

Maxwell VC 1000 12V Vertical Capstan Windlass [VC100012V]

Description

VC 1000 12V Vertical Capstan Windlass

The stainless steel (AISI 316) fluted capstan VC series is designed for simple, low-cost anchor recovery on smaller boats and rope hauling on larger vessels.

Features:

• The vertical design suits smaller powerboats or sailboats and can be utilized for anchor rodes, as a docking capstan on larger craft, or as auxiliary line hauling from any direction
• High-quality, hard-wearing stainless steel (AISI 316) above deck components
• Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes
• Simplified through deck installation by modular design and precise alignment of the gearbox to the top works
• Alternative gearbox/motor positions accommodate virtually all installation situations
• Anodized aluminum gearbox and spacer on VC 500 and VC 1000 models
• Heavy-duty, dual-direction motors, designed for marine operations
• Easily disassembled for servicing
• Can be mounted horizontally for use as a pot hauler or Davit winch

Specifications:

• Maximum Pull: 700 kg (1540 lbs)
• Static Hold: 1200 kg (2640 lbs)
• Line Speed (Normal Working): 20m/min (65ft/min)
• Power Supply (DC): 12V
• Motor (Watt): 1000 W
• Net Weight (DC): 18 kg (40 lbs)
• Hydraulic Pressure: 100 bar (1450 psi)
• Hydraulic Flow: 20 l/min (5.3 US gal/min)
• Net Weight (Hydraulic): 11 kg (24 lbs)
