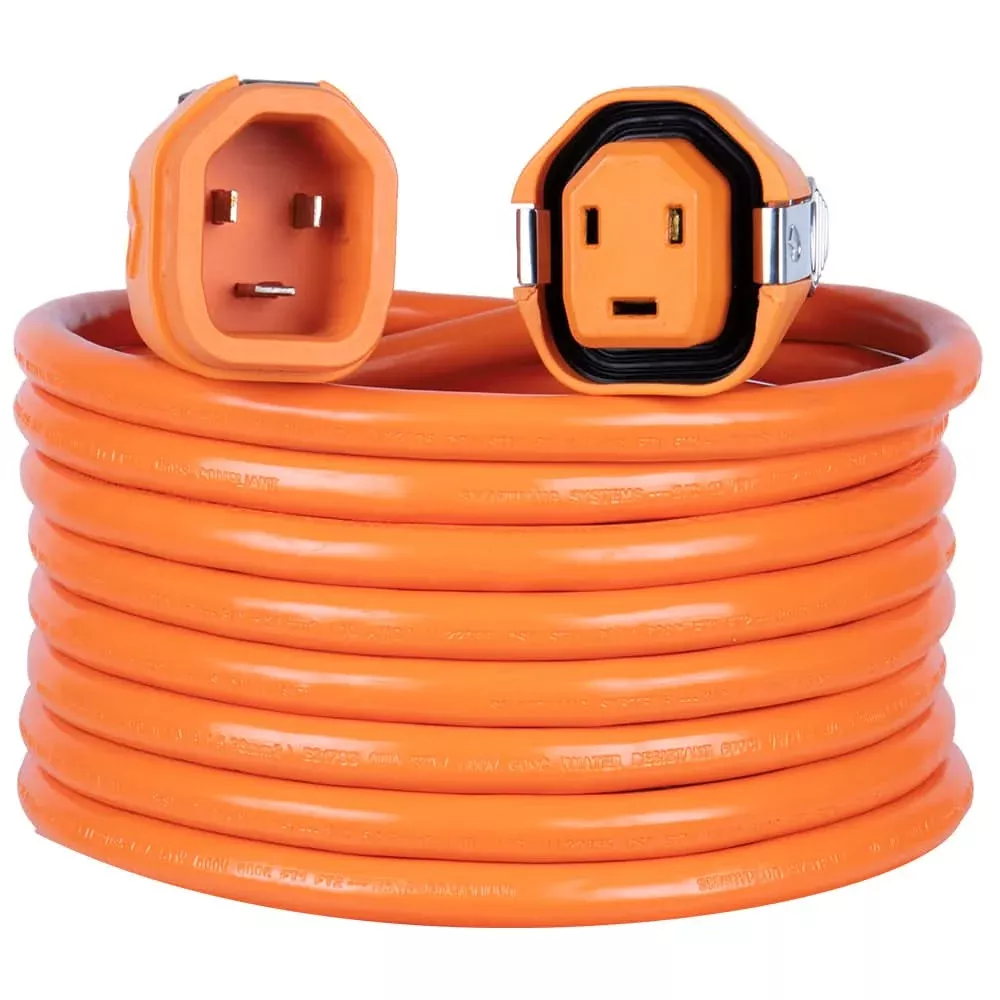

SmartPlug 30AMP Cordset – 25′ SmartPlug to SmartPlug – CM30253

Description

SmartPlug 30AMP Shore Power Cordset – 25′ | SmartPlug to SmartPlug (CM30253)

Upgrade your shore power safety and reliability with the SmartPlug 30AMP Dual Configuration Cordset. Designed to replace the outdated and fire-prone twist-type connectors, this cordset features the innovative SmartPlug connector on both ends—for the boat side inlet and the power pedestal.

The Standard in Shore Power Safety

The CM30253 provides a complete weatherproof power solution that eliminates the primary causes of shore power failure: overheating and corrosion. By increasing the electrical contact area by over 20 times compared to traditional twist-plugs, SmartPlug ensures a cool, secure connection every time.

Key Features:

• Dual SmartPlug Configuration: Features the patented SmartPlug connector on both the boat side and the dock side for a uniform, high-tech power system.

• Multi-Point Locking System: Heavy-duty side clips lock the plug securely into the inlet, taking all the tension off the electrical pins and preventing accidental disconnects.

• Superior Weatherproofing: Multi-fin silicone gaskets are integrated into the interior of the plug body, creating a watertight seal that keeps moisture out.

• Tinned Marine-Grade Wire: The entire 25-foot length uses tinned copper wire to maximize conductivity and provide ultimate resistance to corrosion in salt air.

• LED Power Indicator: Features dual Blue LED lights to provide instant visual confirmation that power is flowing safely to your vessel.

• Asymmetrical Design: The unique body shape ensures the plug only goes in one way—no more fumbling in the dark or wrestling with twist-locks.

Technical Specifications:

• Model Number: CM30253

• Amperage: 30 Amp

• Voltage: 125 Volt

• Length: 25 Feet

• Color: High-Visibility Orange

• Wire Gauge: 10/3 AWG Tinned Copper

• Connections: 30A SmartPlug (Female) to 30A SmartPlug (Male)

Is Your Dock Ready?

This cordset requires a SmartPlug 30A Dockside Inlet to be installed on the power pedestal. If your marina still uses traditional twist-lock outlets, you may need a SmartPlug-to-Twist-Lock adapter.
