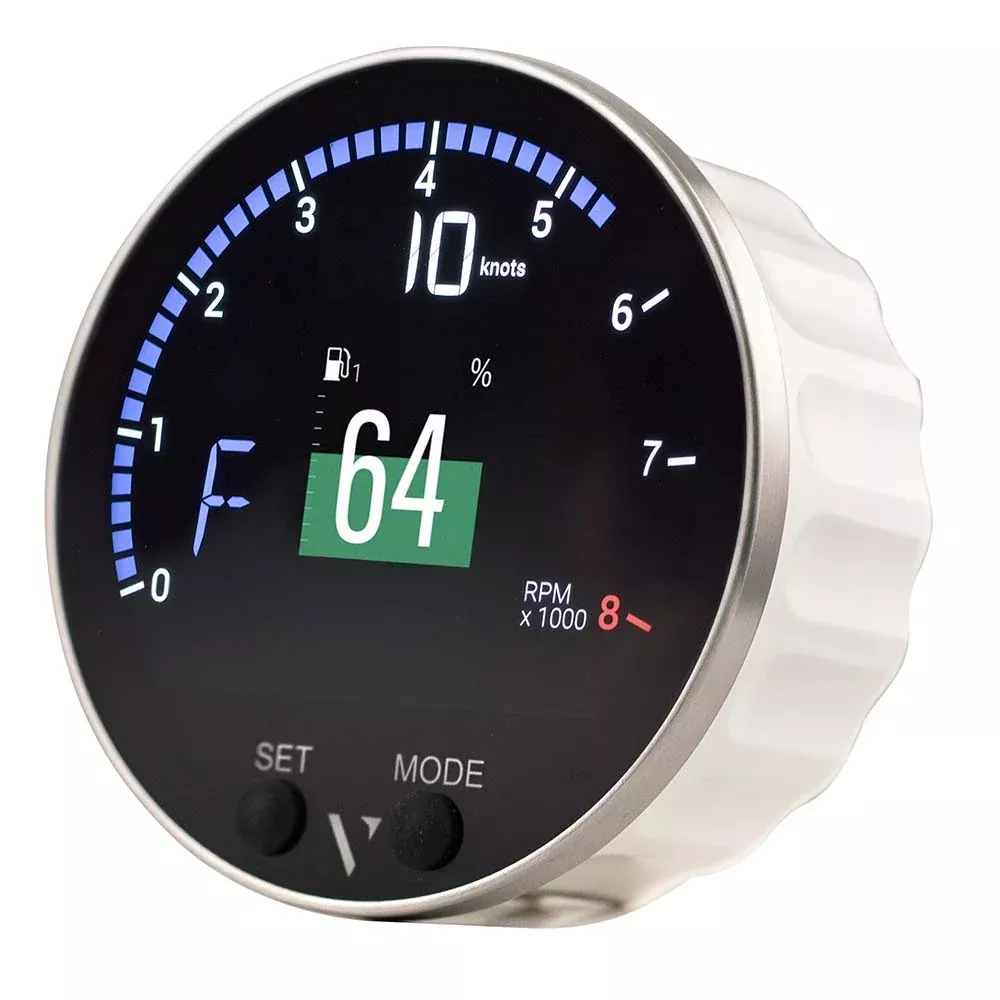

Veratron 85mm (3-3/8″) VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input [B00143501]

Description

85mm (3-3/8″) VMH-35S Multifunction Gauge wtih Voltage Dependent (0-5V) Sensor Input

The ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter, the VMH 35-S embeds a high-performance GNSS receiver which makes it the perfect solution for your boat cockpit.

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It’s easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

• Integrated high-performance GNSS receiver
• Intelligent Battery Sensor (IBS) port
• Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency
• Stylish black-glass design with brushed stainless-steel ring
• Front ring: Brushed stainless steel
• Front lens: Mineral glass
• Display: Color IBN + 1.44″ TFT optically bonded
• Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
• NMEA 2000 certified with embedded analog gateway
• Connectivity: NMEA 2000, LIN, EasyLink

Technical Specifications:

• Nominal voltage: 12V
• Operating voltage: 9-16V
• Current consumption: ≤ 150 mA (normal mode)
• Protection class: IP X7
• Dimensions: 100 mm (outer) and 85 mm (mounting hole)

Specifications:

• Box Set: No
• Gauge Size: 3-3/8″
• Gauge Type: Multifunction
• Series: VMH
• Voltage – Input Range (Volts): 12v

Quick Guide (pdf)
Owner’s Manual (pdf)
